SMD Screen Installation. Built To Perform.
Professional SMD screen installation in Pakistan — from site survey and structure planning to cabinet mounting, cabling, configuration, calibration, testing and final handover.
Your LED Project Needs More Than Hardware.
Buying an SMD screen is only one part of a successful LED display project. The installation affects how the screen looks, operates, remains accessible for maintenance and performs over time.
LUMAX approaches SMD screen installation as a complete project — starting with the physical site and ending with a tested, configured and calibrated display.
Great Hardware Needs Great Installation.
An LED display is a complete system made up of modules, cabinets, power supplies, receiving cards, signal paths, controllers and structural components. Every part needs to work together correctly.
Correct Alignment
Proper mounting and alignment help create a clean, consistent visual surface across the complete display.
Reliable Power
Power distribution and connections should be planned around the actual display configuration and site.
Stable Signal
Proper data and controller configuration helps maintain reliable content transmission to the LED display.
Final Calibration
Calibration helps balance brightness, colour and image performance across the complete LED screen.
From Site Survey To Final Display.
A professional SMD screen installation follows a structured workflow. Each stage prepares the project for the next one, reducing avoidable installation and commissioning issues.
Site Survey
Assess the installation location, screen dimensions, viewing distance, structure, power availability, access and environmental conditions.
Structure Setup
Prepare the mounting structure according to the screen configuration, installation surface and project requirements.
Panel Installation
Cabinets or display panels are mounted, levelled and aligned to create the planned screen surface.
Cabling & Configuration
Power, signal and controller connections are routed, connected and configured according to the display system.
Final Testing
The complete display is tested for signal, brightness, image consistency, content playback and system operation.
Handover
After testing and configuration, the display is prepared for operation with relevant guidance and project support.
Eight Stages Of A Complete LED Installation.
The exact project scope depends on the display, location and installation method, but professional LED installation should cover the critical stages from assessment through commissioning.
Site Survey
Physically assess the installation environment before final installation planning.
Installation Planning
Translate the site information into a practical installation and system plan.
Site Preparation
Prepare the installation area before the LED cabinets and panels are mounted.
Structure Installation
Build and position the mounting structure according to the project design.
Cabinet Installation
Install and align the LED cabinets or panels across the planned display area.
Power & Data Wiring
Complete the electrical and signal connections required for the display system.
Display Calibration
Configure the display for consistent visual performance across the complete screen.
Testing & Sign-Off
Verify the complete system and prepare the operating team for day-to-day use.
Installation Starts Before The Screen Arrives.
A physical site survey helps identify the practical requirements of an SMD screen installation before hardware is mounted. This can help the installation team plan the structure, power, signal routes and service access correctly.

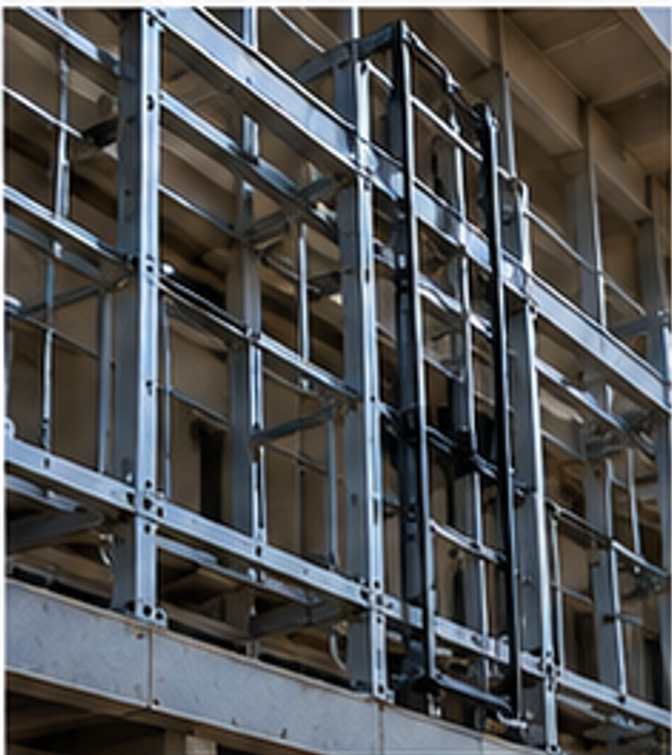

Build The Right Foundation.
The mounting structure is an important part of an LED installation. It needs to suit the screen configuration, installation surface, access requirements and environment.
For permanent installations, structure planning should be completed before the display cabinets are mounted.

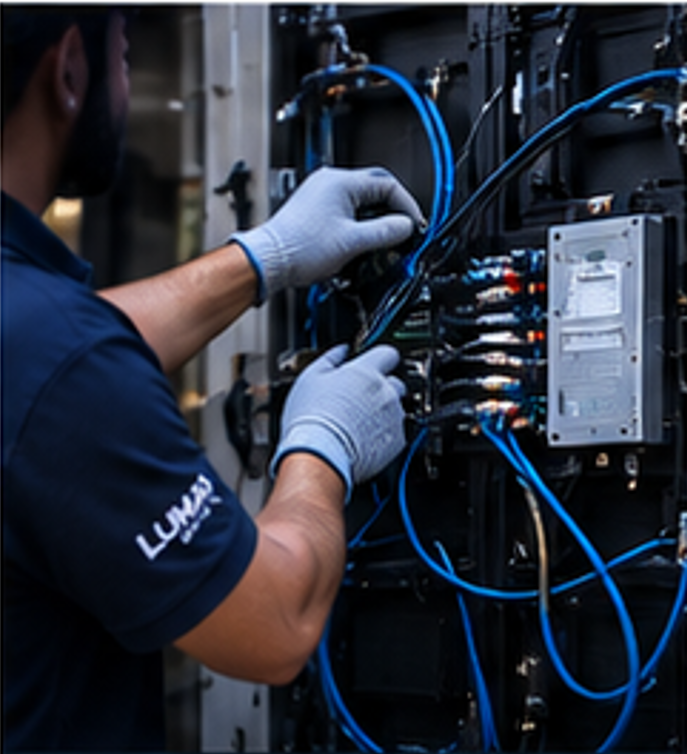

Clean Cabling. Stable Signal.
An LED screen requires both power and signal connections. Proper cable routing and controller configuration are essential parts of a complete SMD screen installation.

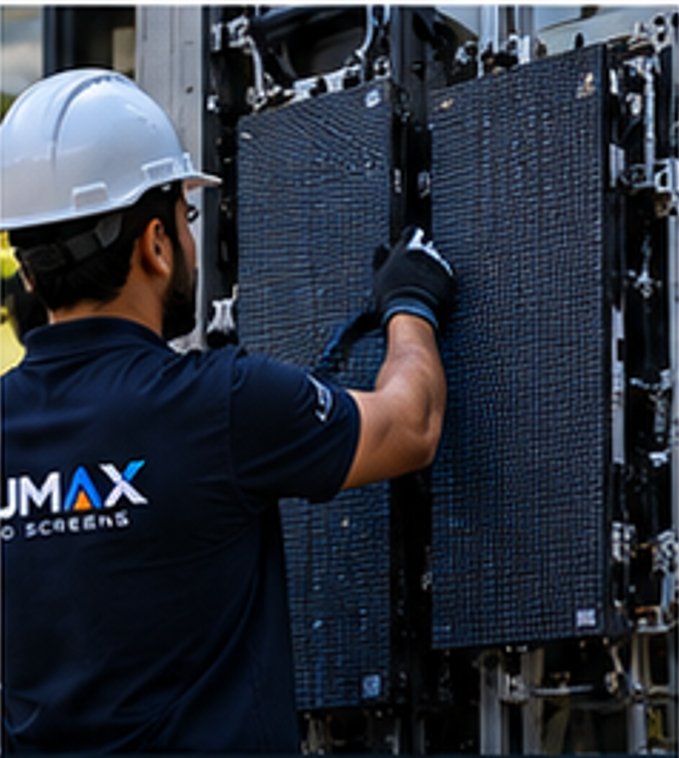

Mount Every Panel With Precision.
Once the structure is ready, LED cabinets or panels are installed across the planned display area. Alignment and consistency are important because even small installation variations can affect the appearance of a large display.

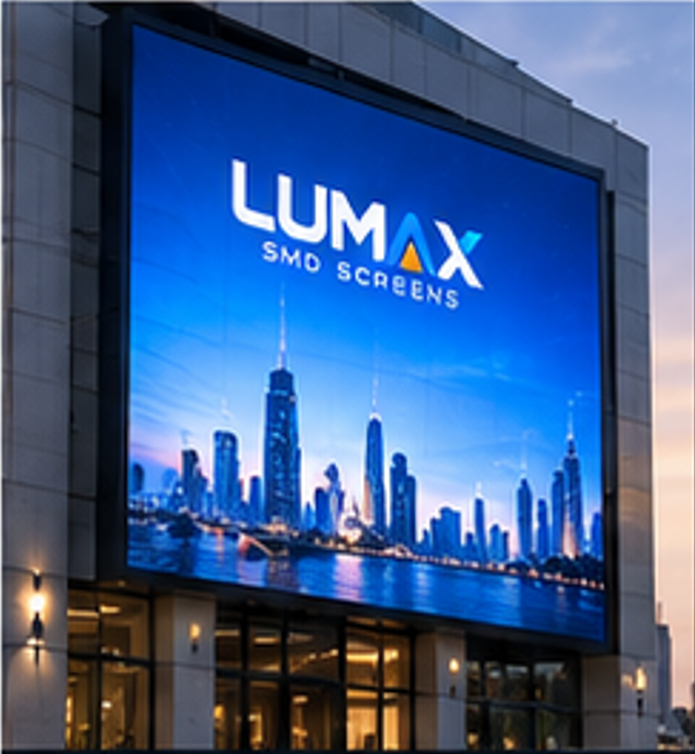

Installation Is Not Finished Until The Display Is Tested.
After mounting, wiring and configuration, the complete SMD screen should be tested as one visual system. Final commissioning helps verify the signal chain, content playback and display performance.
What Should Be Checked Before Handover?
A professional LED installation should be reviewed as a complete system before the project is considered finished.
Structure & Mounting
Confirm the mounting system, alignment and installation condition.
Panel Alignment
Inspect the complete LED surface for consistent mounting and visible alignment.
Power Connections
Verify the planned electrical connections and system power-up sequence.
Signal Connections
Check the signal path between the source, controller and LED display.
Display Configuration
Confirm controller and display configuration for the installed screen.
Calibration
Check brightness, colour consistency and relevant image settings.
Content Playback
Test actual content and verify the intended source and playback workflow.
Handover
Provide relevant operating guidance and project completion information.
Indoor & Outdoor SMD Screen Installation.
Installation requirements change depending on where the LED screen will operate. Outdoor projects can involve additional structural and environmental considerations compared with controlled indoor installations.
Indoor SMD Screen Installation
Indoor installations are commonly used in offices, conference rooms, shopping malls, retail stores, showrooms, reception areas and event spaces.
Outdoor SMD Screen Installation
Outdoor installations require additional attention to structure, environmental exposure, viewing conditions, electrical planning and service access.
What Can Professional LED Installation Include?
The exact scope depends on the project quotation and site, but a complete installation may involve several connected services.
Site Assessment
Review the location, display purpose, dimensions, viewing distance and installation environment.
Mounting Structure
Plan or install the appropriate mounting structure according to the display and site requirements.
Cabinet Installation
Mount, level and align the LED cabinets or panels across the display area.
Power Connections
Complete project-specific power distribution and display electrical connections.
Data & Controller
Connect and configure the display controller and signal path for content transmission.
Configuration
Configure the installed display according to its actual resolution and system setup.
Display Optimization
Review brightness, colour consistency and relevant image settings during commissioning.
Testing & Guidance
Verify the system and provide relevant operating and handover guidance.
Plan Your Screen Before Installation.
Explore related LUMAX guides and tools before finalizing your SMD screen installation project.
SMD Screen Installation Questions Answered.
Answers to common questions about SMD LED screen installation, site surveys, structure, cabling, calibration and project timelines.
What is included in SMD screen installation?
Do I need a site survey before installing an SMD screen?
Can LUMAX install both indoor and outdoor SMD screens?
Does an LED screen need calibration after installation?
How long does SMD screen installation take?
Can an SMD screen be installed on an existing wall?
Does installation include the steel structure?
Does LUMAX provide LED screen installation in Pakistan?
What information should I provide for an installation quote?
Let's Build Your LED Display The Right Way.
Share your location, screen dimensions, application and viewing requirements with LUMAX. Our team can help you plan the installation approach, structure, wiring, configuration and final commissioning for your project.
